nimory: My Internet at Home

nimory is a single machine running everything I need — files, photos, notes, sync, automation, and local AI. No subscriptions. No third-party dependency for the things that matter.

This is a write-up of how it's built and how it works.

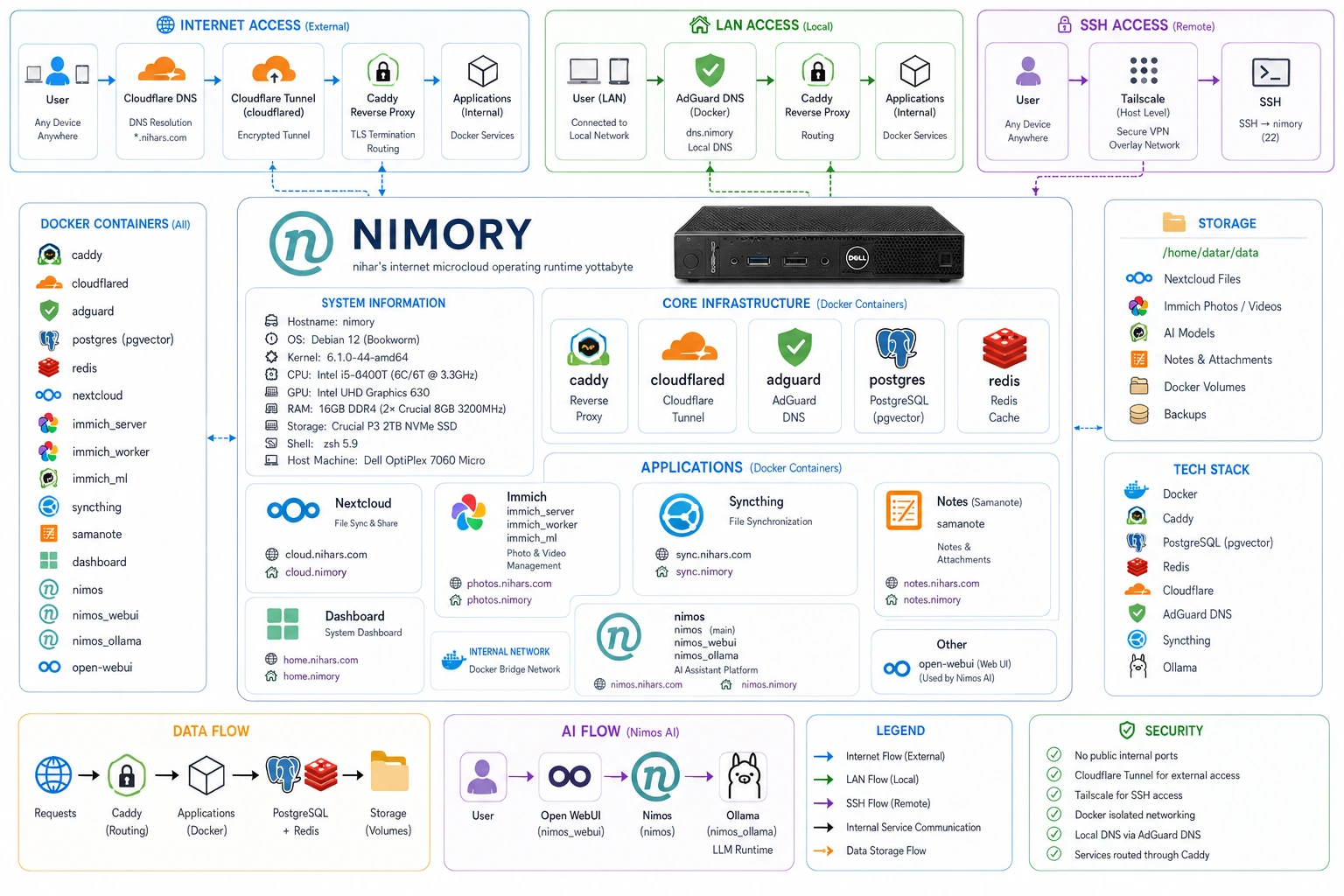

nimory architecture

Hardware 🖥️

A Dell OptiPlex 7060 Micro. Small form factor, low power, silent enough to ignore.

Storage is partitioned with LVM:

nvme0n1
├── nvme0n1p1   512M   /boot/efi
├── nvme0n1p2   488M   /boot
└── nvme0n1p3   1.8T   LVM
    ├── nimory--vg-root    →  /
    └── nimory--vg-swap_1  →  swap

It runs continuously with minimal intervention and low power usage.

Access Model 🌐

Internet (Cloudflare Tunnel)

No ports are exposed on the router. nimory establishes an outbound encrypted tunnel.

Browser → Cloudflare DNS → Cloudflare Tunnel → cloudflared → Caddy → App

Admin (Tailscale)

SSH is private via WireGuard mesh:

tailscale ssh nimory

Local LAN

AdGuard resolves local domains:

Device → AdGuard DNS → Caddy → App

Access Summary

Reverse Proxy 🧭

All traffic passes through a single entry point: Caddy

Security headers:

Strict-Transport-Security: max-age=31536000; includeSubDomains; preload
X-Content-Type-Options: nosniff
X-Frame-Options: SAMEORIGIN
X-XSS-Protection: 1; mode=block
Referrer-Policy: strict-origin-when-cross-origin

Public Domains

LAN Domains

Containers 📦

Each service runs in isolation and communicates over a shared internal network.

Edge + Networking

Infrastructure

Files + Sync

Photos (Immich)

AI Runtime

Each talks to Ollama independently — there's no shared AI gateway, just one local runtime backing two different front doors. Everything runs locally. No external API calls unless I've explicitly enabled an online fallback.

Apps

The Three Custom Apps 🧩

Previous write-ups of nimory glossed over this, but three home-built apps are really what the whole machine is for. Everything else — Caddy, Immich, Nextcloud — is infrastructure in service of these:

Natlas is the web UI — a single-user FastAPI + Alpine.js app for editing the flat-file vault: events, subscriptions, inventory, health, birthdays. Plugin-first: a new feature is a folder, not a change to the core.

Taskmaster is the automation layer — one container, one internal scheduler, no OS-level cron. It runs a nightly pipeline over the same vault: rolling over old notes, advancing recurring events, syncing birthdays from Google Contacts, regenerating the static health site, and sending me a daily briefing over Telegram.

Nimo is the AI persona, reachable two ways — as a Telegram bot I talk to directly, and as an internal chat backend Taskmaster calls for the nightly briefing. Backed by a local Ollama model, with an online fallback if I want it.

All three read and write the same plain YAML/Markdown/CSV files in an Obsidian vault — no database, no API layer between them. That's deliberate: I can open any of these files by hand and understand exactly what's in it.

Storage 💾

All persistent data lives on host:

/home/datar/
├── data/
│   ├── notes/       ← the vault: events, subscriptions, health, inventory, birthdays
│   ├── documents/   ← Syncthing
│   ├── music/       ← Syncthing
│   ├── photos/      ← manual, selected subset only (not Syncthing)
│   ├── share/       ← Samba, LAN only
│   ├── backups/
│   └── workspace/
└── docker/

Automation ⚙️

Taskmaster replaces what used to be two host cron jobs. It runs its own scheduler inside one container, against schedule.yml, and works through a nightly pipeline against the vault:

archive rollover → inbox cleanup → subscriptions → event lifecycle
  → birthday sync (weekly) → event updates → regenerate health site
  → build daily briefing → send it to Telegram

Nothing touches the vault without going through yaml.safe_dump — a past f-string YAML writer once corrupted an events file, so every writer (Natlas, Taskmaster, the Telegram bot) follows the same rule now.

Security Model 🔐

One deliberate exception: the dashboard has read-only access to the host filesystem and the Docker socket, which is how it shows live container and system stats. It's the one container with that level of visibility, and I'm keeping it that way on purpose rather than by oversight.

Attack surface is otherwise intentionally minimal.

Not Done Yet 🚧

nimory runs quietly and stays out of the way.

It's not complex for the sake of it. Just controlled, predictable, and entirely mine.
